MobiDes
Mobi Des is a project by The Scale of Things for Look.Stop.Shop during the State of Design festival in Melbourne, Australia last July. Mobi Des was a pop up shop that was based in City Square during the festival.
HPM ver. 07
Featuring: custom designed PCB, SRF05 ultrasonic range finder, on-board 6v power and 3D printed PLA housing.
Haptic Proximity Module for Low Vision Users
Haptic Proximity Module for Low Vision Users
Durable Visual Record (DVR) [honours thesis] can now be viewed at Academia.edu!
Ddownload link: IMRAN_DVR
Graduate Exhibition Poster
Final A0 graduate exhibition poster. Simple with a hero-shot, abstract and link to my instructables! Here’s the Exhibition Poster.
Offically an Instructables!! Check it out!
Finally made the HPM in strip board an instructables. Hopefully it will grow and develop as people engage with it!
the “kit”
On the way to an instructables.com tute! first run with the custom pcb.
First Custom Circuit Board
Using transfer paper and then etching process I was able to create this circuit board. Needs to be drilled out and then all electronics can be soldered on!
Strip board Module 02

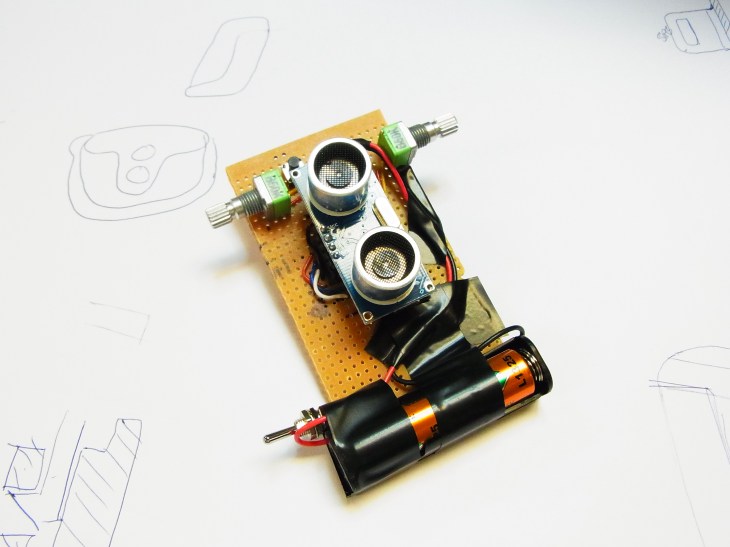

This is the second strip board module that I have built. It changes the orientation of the arduino and sensor and places them vertically while facing the potentiometers outward, creating a ‘T’ layout. Hopefully leading to a tidier and more compact housing. Again the power source is external to the circuit and not included as size and the appropriate battery holder were still being sought after (now found!).
Strip board Module 01

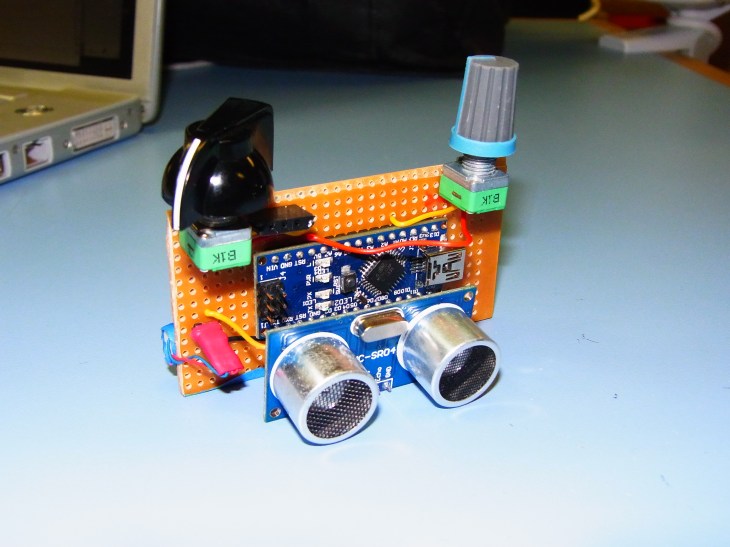

This is my first attempt at a single pcb module. All elements except for the battery have been soldered to the strip board. This allowed for two things, shrinking and tidying the module while teaching me about circuit layouts and considering layout to suit size.
